UNIT 17: SIMPLE MACHINES LEARNING OBJECTIVES By the end of this unit, you should be able to: • Define and explain the terms Mechanical advantage (MA), Velocity Ratio (VR), and Efficiency of a simple machine. • State the formulas for Mechanical advantage, Velocity Ratio, and Efficiency. • Perform calculations involving Mechanical advantage, Velocity Ratio, and Efficiency for simple machines. CORE CONCEPTS A simple machine is a device that changes the direction or magnitude of a force. Simple machines help us to do work more easily by allowing us to apply a smaller force over a longer distance to move a larger load, or by changing the direction of the force. Examples of simple machines include levers, pulleys, inclined planes, wedges, screws, and wheel and axle systems.

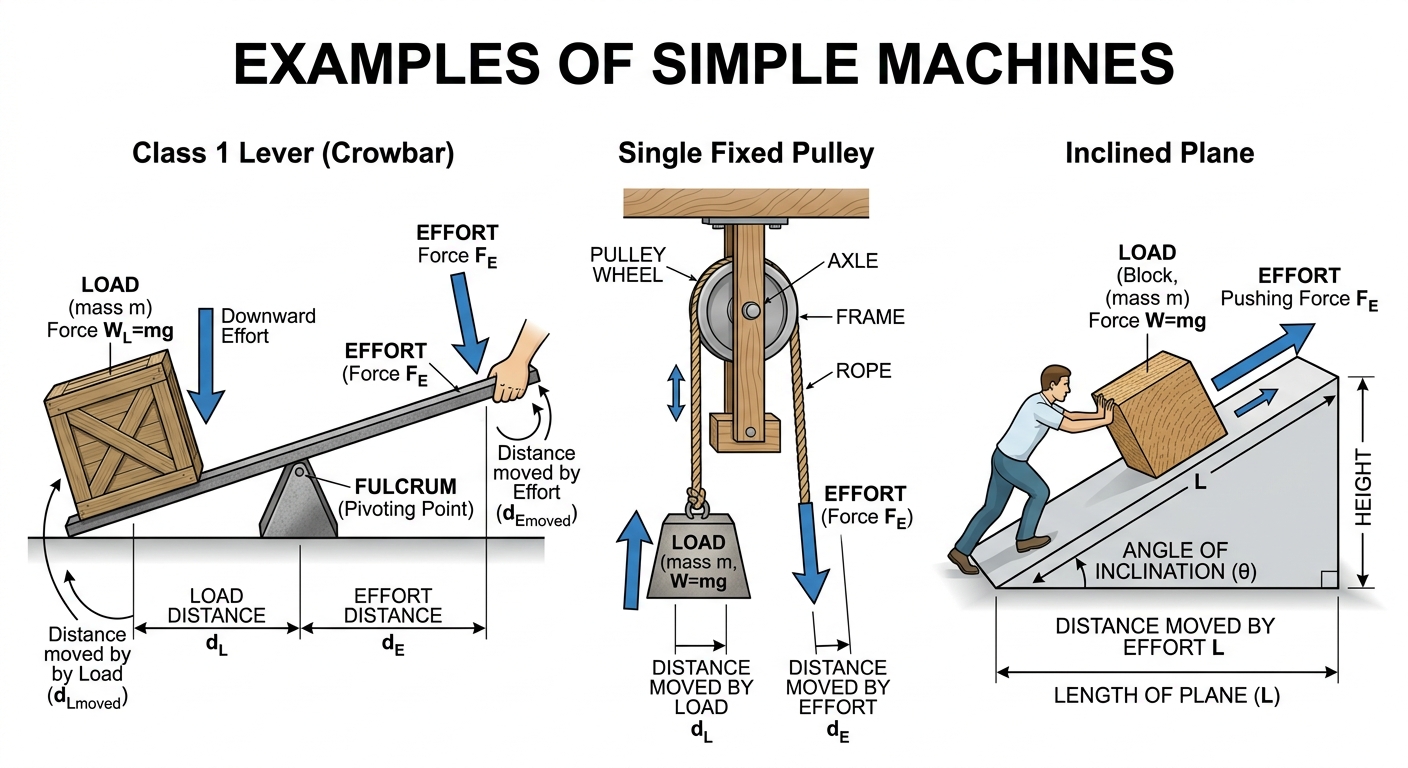

EXAMPLES OF SIMPLE MACHINES

When using a simple machine, there are two important forces: • Load (L): This is the resistance that needs to be overcome by the machine. It is the weight of the object being moved or the force being applied by the machine. The load is measured in Newtons (N). • Effort (E): This is the force applied to the machine to overcome the load. It is the force you exert to operate the machine. The effort is also measured in Newtons (N). MECHANICAL ADVANTAGE (MA) Mechanical advantage (MA) is a measure of how much a simple machine multiplies the force you apply. It is the ratio of the load (output force) to the effort (input force). A machine with a high mechanical advantage allows you to move a heavy load with a small effort. The formula for Mechanical advantage is:

Mechanical Advantage Formula

MA = Load (L)Effort (E)

Where:
• MA = Mechanical advantage (no units, as it is a ratio of two forces)
• L = Load (measured in Newtons, N)
• E = Effort (measured in Newtons, N)

Figure: Formula for Mechanical Advantage

A machine can have an MA greater than 1, equal to 1, or less than 1: • MA > 1: The machine multiplies the effort, making it easier to lift heavy loads (e.g., a car jack). • MA = 1: The machine only changes the direction of the force (e.g., a single fixed pulley). • MA < 1: The machine increases the distance or speed of the load at the expense of force (e.g., a fishing rod). Worked Example 1: Calculating Mechanical Advantage A simple machine is used to lift a load of 500 N by applying an effort of 100 N. Calculate the mechanical advantage of the machine.

Solution

Given:	L = 500 N, E = 100 N
Find:	MA = ?
Formula:	MA = LE
Substitute:	MA = 500 N100 N
Answer:	MA = 5

Worked Example: Calculating Mechanical Advantage

VELOCITY RATIO (VR) The Velocity Ratio (VR), also known as the distance ratio, is the ratio of the distance moved by the effort to the distance moved by the load. It tells us how much further the effort has to move compared to the load. The formula for Velocity Ratio is:

Velocity Ratio Formula

VR = Distance moved by effort (d_E)Distance moved by load (d_L)

Where:
• VR = Velocity Ratio (no units, as it is a ratio of two distances)
• d_E = Distance moved by effort (measured in metres, m)
• d_L = Distance moved by load (measured in metres, m)

Figure: Formula for Velocity Ratio

For an ideal machine (one with no friction), the mechanical advantage would be equal to the velocity ratio. However, in real machines, friction is always present, so MA is usually less than VR.

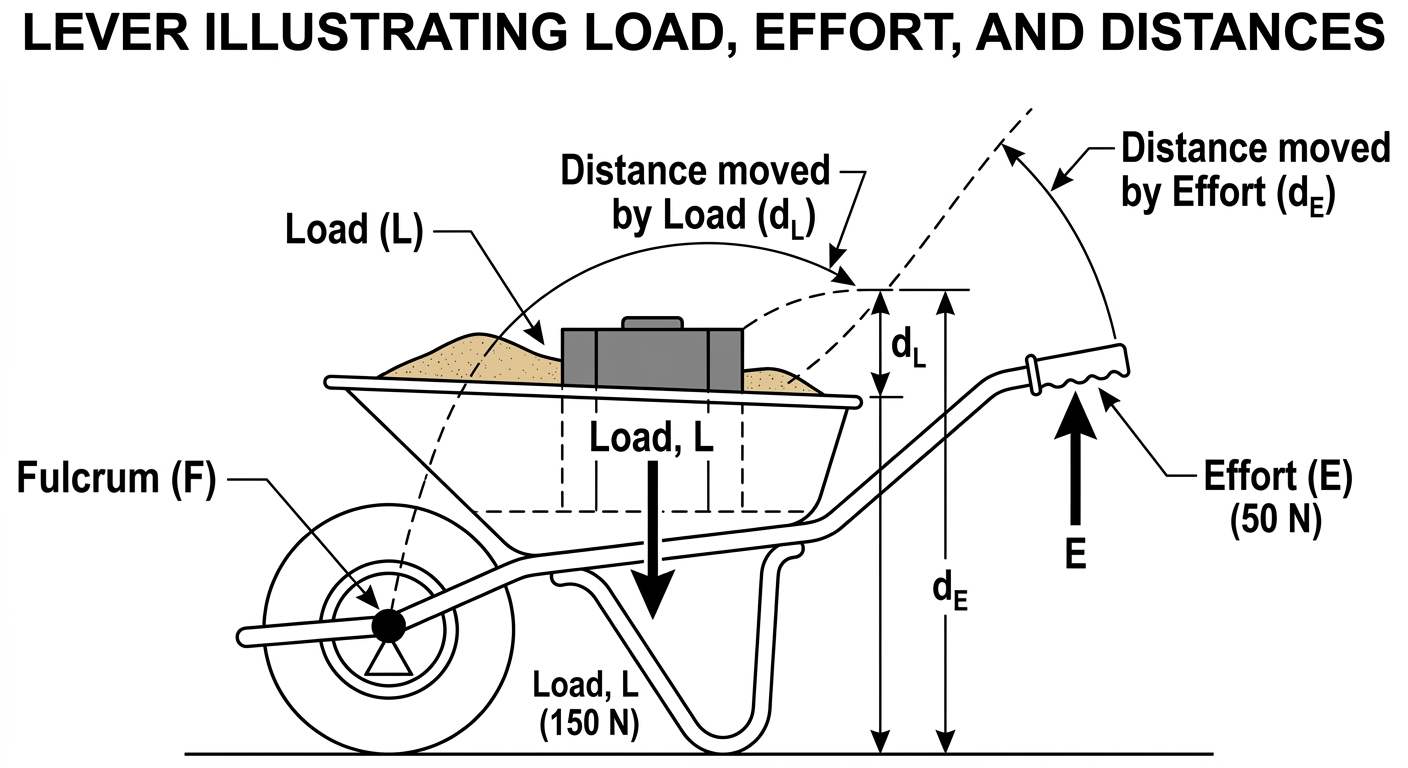

LEVER ILLUSTRATING LOAD, EFFORT, AND DISTANCES

Worked Example 2: Calculating Velocity Ratio In a pulley system, the effort moves a distance of 4.0 m to lift a load by 0.8 m. Calculate the velocity ratio of the pulley system.

Solution

Given:	d_E = 4.0 m, d_L = 0.8 m
Find:	VR = ?
Formula:	VR = d_Ed_L
Substitute:	VR = 4.0 m0.8 m
Answer:	VR = 5

Worked Example: Calculating Velocity Ratio

EFFICIENCY Efficiency is a measure of how well a machine converts the input work (work done by effort) into useful output work (work done on the load). No real machine is 100% efficient because some energy is always lost, usually as heat due to friction. Efficiency is expressed as a percentage. The formula for Efficiency is:

Efficiency Formula

Efficiency = MAVR × 100%

Alternatively:
Efficiency = Work OutputWork Input × 100%
Where Work Output = Load × d_L and Work Input = Effort × d_E

Figure: Formula for Efficiency

Since MA is usually less than VR due to friction, the efficiency of a real machine is always less than 100%. The energy lost due to friction is converted into heat and sound.

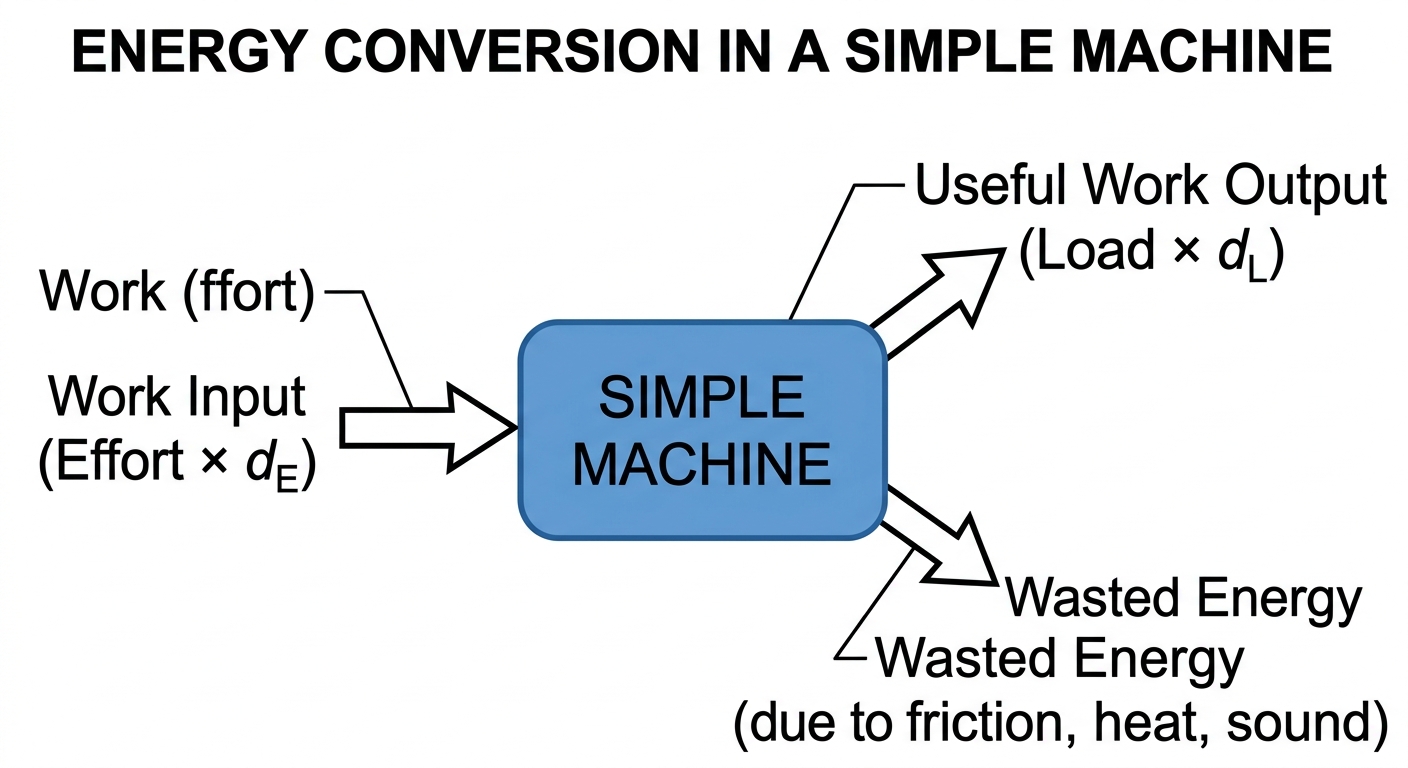

ENERGY CONVERSION IN A SIMPLE MACHINE

Worked Example 3: Calculating Efficiency A simple machine has a mechanical advantage of 4 and a velocity ratio of 5. Calculate its efficiency.

Solution

Given:	MA = 4, VR = 5
Find:	Efficiency = ?
Formula:	Efficiency = MAVR × 100%
Substitute:	Efficiency = 45 × 100%
Answer:	Efficiency = 80%

Worked Example: Calculating Efficiency

SUMMARY • Simple machines help us to do work more easily. • Load (L) is the resistance overcome by the machine. • Effort (E) is the force applied to the machine. • Mechanical advantage (MA) is the ratio of load to effort: MA = LE. • Velocity Ratio (VR) is the ratio of the distance moved by effort to the distance moved by load: VR = d_Ed_L. • Efficiency measures how well a machine converts input work to output work: Efficiency = MAVR × 100%. • Due to friction, the efficiency of real machines is always less than 100%. PRACTICE QUESTIONS Question 1 (Easy) Define the following terms: (a) Mechanical advantage (b) Velocity Ratio (c) Efficiency Question 2 (Medium) A wheelbarrow is used to lift a pile of sand. If the load of the sand is 600 N and the effort applied by the worker is 150 N, calculate the mechanical advantage of the wheelbarrow. Question 3 (Medium) In a certain lifting machine, the effort moves a distance of 6.0 m while the load is lifted by 1.5 m. Determine the velocity ratio of this machine. Question 4 (Hard) A block and tackle system lifts a load of 1200 N when an effort of 300 N is applied. The effort moves 8.0 m to lift the load by 2.5 m. (a) Calculate the mechanical advantage of the system. (b) Calculate the velocity ratio of the system. (c) Calculate the efficiency of the system. SOLUTIONS Solution to Question 1 (a) Mechanical advantage is the ratio of the load (output force) to the effort (input force) of a machine. (b) Velocity Ratio is the ratio of the distance moved by the effort to the distance moved by the load. (c) Efficiency is a measure of how well a machine converts input work into useful output work, usually expressed as a percentage. Solution to Question 2 A wheelbarrow is used to lift a pile of sand. If the load of the sand is 600 N and the effort applied by the worker is 150 N, calculate the mechanical advantage of the wheelbarrow.

Solution

Given:	L = 600 N, E = 150 N
Find:	MA = ?
Formula:	MA = LE
Substitute:	MA = 600 N150 N
Answer:	MA = 4

Solution to Question 3 In a certain lifting machine, the effort moves a distance of 6.0 m while the load is lifted by 1.5 m. Determine the velocity ratio of this machine.

Solution

Given:	d_E = 6.0 m, d_L = 1.5 m
Find:	VR = ?
Formula:	VR = d_Ed_L
Substitute:	VR = 6.0 m1.5 m
Answer:	VR = 4

Solution to Question 4 A block and tackle system lifts a load of 1200 N when an effort of 300 N is applied. The effort moves 8.0 m to lift the load by 2.5 m. (a) Calculate the mechanical advantage of the system.

Solution (Part a)

Given:	L = 1200 N, E = 300 N
Find:	MA = ?
Formula:	MA = LE
Substitute:	MA = 1200 N300 N
Answer:	MA = 4

(b) Calculate the velocity ratio of the system.

Solution (Part b)

Given:	d_E = 8.0 m, d_L = 2.5 m
Find:	VR = ?
Formula:	VR = d_Ed_L
Substitute:	VR = 8.0 m2.5 m
Answer:	VR = 3.2

Solution (Part c)

Given:	MA = 4 (from part a), VR = 3.2 (from part b)
Find:	Efficiency = ?
Formula:	Efficiency = MAVR × 100%
Substitute:	Efficiency = 43.2 × 100%
Answer:	Efficiency = 125% (This result indicates an error in the question's values, as efficiency cannot exceed 100%. For a real machine, MA must be less than or equal to VR. Assuming VR should be greater than MA for a typical problem, if the VR was 5, then Efficiency would be 80% as in Worked Example 3. If MA was 2.5 and VR was 4, then efficiency would be 62.5%. For this specific calculation based on the given numbers, the mathematical result is 125%, which is physically impossible. This highlights the importance of checking problem context. However, following the calculation strictly with the provided numbers: 4/3.2 * 100% = 125%)

COMMON MISTAKES TO AVOID • Confusing Load and Effort: Always remember that Load is the force being overcome, and Effort is the force applied. • Incorrect Units: While MA and VR have no units, ensure that Load and Effort are in Newtons (N) and distances are in metres (m) before calculation. • Efficiency greater than 100%: If your calculation gives an efficiency greater than 100%, it means there is an error in your calculation or the given values in the problem, as no real machine can be more than 100% efficient. • Mixing up formulas: Make sure to use the correct formula for MA, VR, and Efficiency. EXAM TIPS • Read the question carefully: Identify what is given (Load, Effort, distances) and what needs to be calculated (MA, VR, Efficiency). • Write down the formula: Always start by writing the correct formula for the quantity you are calculating. • Show all your working: Even if you make a mistake in the final answer, you might get marks for correct steps. • Include units: For forces and distances, always state the correct SI units. MA, VR, and Efficiency (as a ratio) do not have units, but efficiency as a percentage should be stated with '%'. • Check your answer: Does your answer make sense? For instance, efficiency should always be less than or equal to 100%. QUICK REVISION SUMMARY

Key Concepts: Simple Machines

Term	Definition	Formula
Load (L)	Resistance overcome by the machine.	Measured in Newtons (N)
Effort (E)	Force applied to the machine.	Measured in Newtons (N)
Mechanical Advantage (MA)	Ratio of load to effort.	MA = LE
Velocity Ratio (VR)	Ratio of distance moved by effort to distance moved by load.	VR = d_Ed_L
Efficiency	How well a machine converts input work to output work (%).	Efficiency = MAVR × 100%

Figure: Summary of Simple Machine Concepts and Formulas
