Physics Form 1Teaching Notes
TOPIC: GENERAL PHYSICS SUBTOPIC: PRECISION AND ACCURACY SPECIFIC COMPETENCES: 1. Demonstrate precision and accuracy in measurements INTRODUCTION In Physics, measurements are fundamental to understanding the world around us. Whether we are measuring length, mass, time, or temperature, it is crucial that our measurements are reliable. This unit introduces the concepts of precision and accuracy, which are essential for making good measurements, and explores how to use common instruments like the metre rule, Vernier calipers, and micrometer screw gauge with these principles in mind. CORE CONCEPTS 1. PRECISION Precision refers to how close repeated measurements are to each other. A precise measurement system will give nearly identical results each time it is used under the same conditions, regardless of whether the results are correct. It indicates the reproducibility or consistency of a measurement. For example, if you measure the length of a table three times and get 1.50 m, 1.51 m, and 1.50 m, these measurements are quite precise because they are very close to each other. 2. ACCURACY Accuracy refers to how close a measurement is to the true or actual value of the quantity being measured. A measurement is accurate if it is very close to the accepted standard or true value. For instance, if the actual length of the table is known to be 1.52 m, and your measurements are 1.50 m, 1.51 m, and 1.50 m, then while precise, they are not entirely accurate as they consistently miss the true value by a small margin. 3. DIFFERENCE BETWEEN PRECISION AND ACCURACY It is important to understand that precision and accuracy are not the same thing. A measurement can be precise without being accurate, and it can be accurate without being highly precise (though usually, accurate measurements also tend to be precise). • High Precision, Low Accuracy: Measurements are consistently close to each other but far from the true value. This can happen due to a systematic error in the instrument or method. • Low Precision, Low Accuracy: Measurements are scattered and far from the true value. • Low Precision, High Accuracy: Measurements are scattered but their average might be close to the true value. This is rare and usually indicates random errors. • High Precision, High Accuracy: Measurements are consistently close to each other and also close to the true value. This is the ideal goal in scientific measurement.

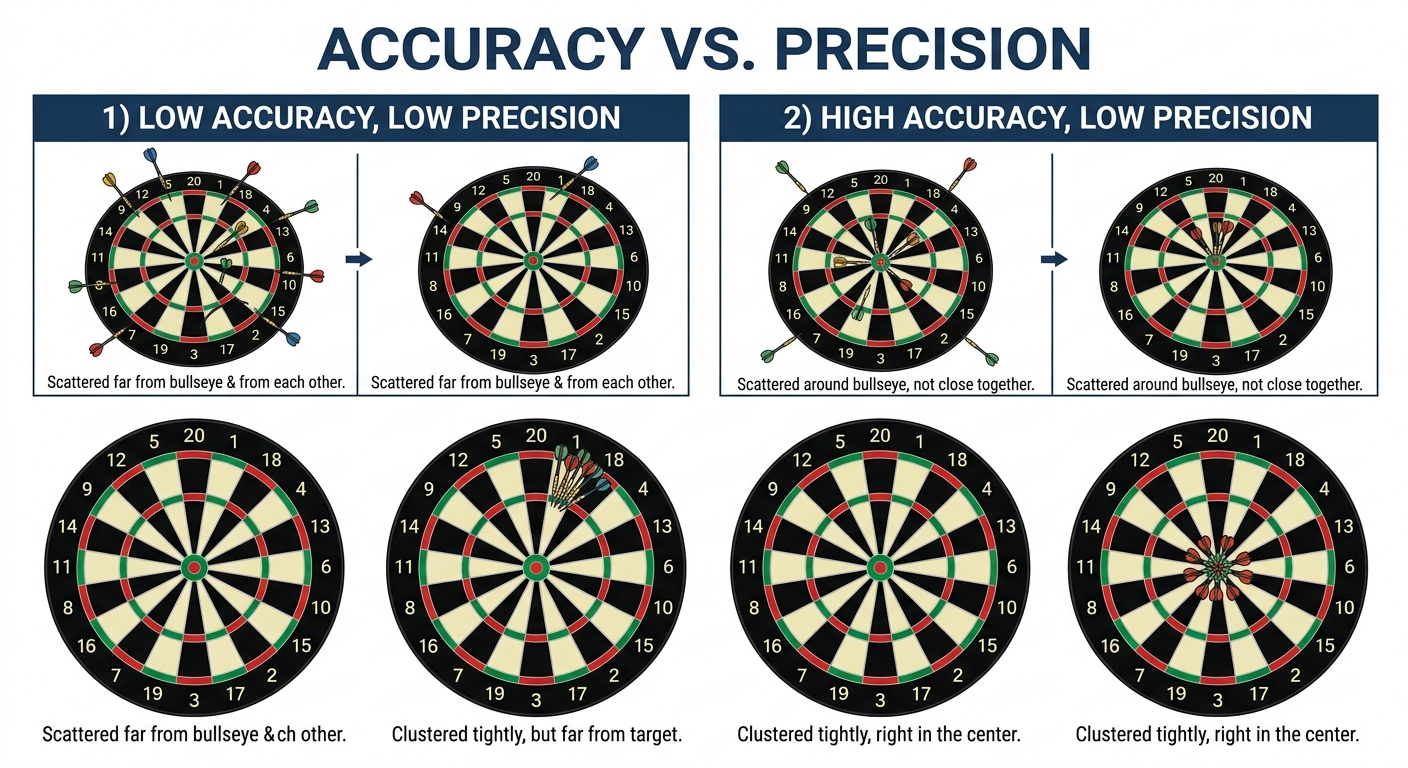

PRECISION VS ACCURACY

PRECISION VS ACCURACY

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark] Define the term 'accuracy' in the context of scientific measurements.
2. Apply the Concept [2 marks] A student measures the length of a wire three times and obtains 15.2 cm, 15.3 cm, and 15.2 cm. The actual length of the wire is 16.0 cm. Comment on the precision and accuracy of these measurements.
3. Misconception Check True or False: If a measuring instrument is very precise, it means its measurements are always close to the true value. Justify your answer.
Answers
1. Accuracy refers to how close a measured value is to the true or accepted value of the quantity.
2. The measurements (15.2 cm, 15.3 cm, 15.2 cm) are precise because they are very close to each other. However, they are not accurate because they are significantly different from the actual length of 16.0 cm.
3. False. Precision refers to the consistency of repeated measurements, not their closeness to the true value. An instrument can be consistently wrong (precise but inaccurate) if there is a systematic error.
4. MEASURING LENGTH WITH PRECISION AND ACCURACY To achieve precision and accuracy in length measurements, it is essential to use the correct instrument for the required level of detail and to use it properly, avoiding common errors such as parallax. 4.1. THE METRE RULE A metre rule (or ruler) is a common measuring instrument used to measure lengths of objects up to 1 metre. It typically has markings for centimetres (cm) and millimetres (mm). • Least Count: The smallest measurement that can be made accurately with an instrument. For a standard metre rule, the smallest division is 1 mm or 0.1 cm. So, its least count is 1 mm or 0.1 cm. • How to use: 1. Place the object directly against the rule. 2. Ensure your eye is positioned directly perpendicular to the mark being read to avoid parallax error. Parallax error occurs when the eye is not directly in line with the mark, causing the reading to appear higher or lower than it actually is. 3. Read from the zero mark of the rule, not from the end, especially if the end is worn.

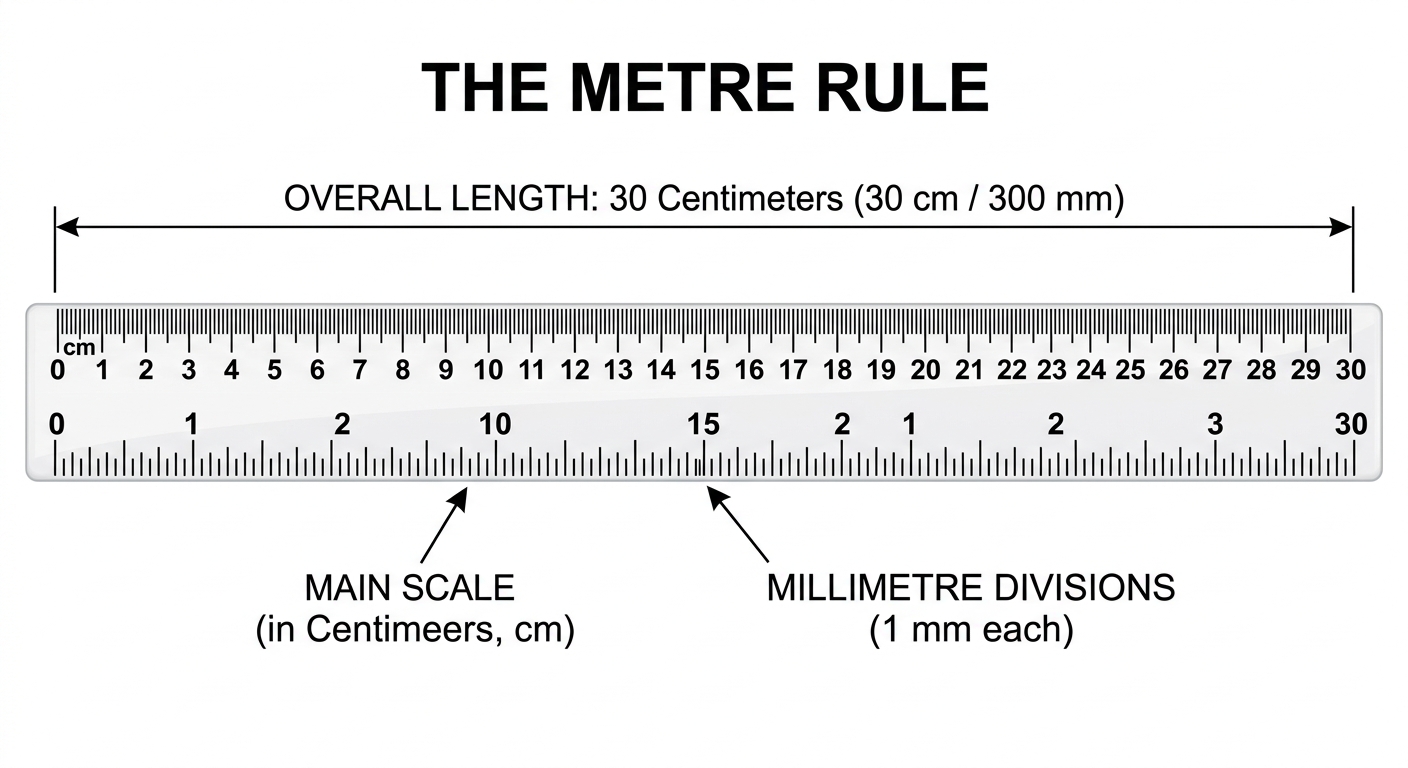

THE METRE RULE

THE METRE RULE

Worked Example: Reading a Metre Rule A student uses a metre rule to measure the length of a pencil. The pencil's tip aligns with the 12.5 cm mark, and its eraser end aligns with the 2.0 cm mark. Calculate the length of the pencil.
Solution
Given: Final reading = 12.5 cm   |   Initial reading = 2.0 cm
Find: Length of pencil = ?
Formula: Length = Final reading − Initial reading
Substitute: Length = 12.5 cm − 2.0 cm
Answer: Length = 10.5 cm

Worked Example: Calculating length using a metre rule

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark] What is the least count of a standard metre rule?
2. Apply the Concept [2 marks] A student measures the length of a book using a metre rule. The left edge of the book is at the 5.0 cm mark, and the right edge is at the 28.3 cm mark. What is the length of the book?
3. Misconception Check Explain why reading a metre rule from an angle can lead to an inaccurate measurement.
Answers
1. The least count of a standard metre rule is 1 mm or 0.1 cm.
2. Length = Final reading − Initial reading = 28.3 cm − 5.0 cm = 23.3 cm.
3. Reading from an angle causes parallax error. The apparent position of the mark shifts depending on the viewing angle, leading to a reading that is either too high or too low, hence inaccurate.
4.2. THE VERNIER CALIPERS Vernier calipers are used for more precise measurements of length, thickness, and depth of objects, typically up to 15 cm or 20 cm. They can measure to an accuracy of 0.01 cm or 0.1 mm. • Parts of a Vernier Caliper: * External jaws: For measuring external dimensions (e.g., diameter of a rod). * Internal jaws: For measuring internal dimensions (e.g., inner diameter of a pipe). * Depth rod: For measuring depth of holes. * Main scale: A fixed scale, usually marked in millimetres (mm) or centimetres (cm). * Vernier scale: A sliding scale that moves along the main scale, used to read fractions of the smallest division on the main scale. * Locking screw: To hold the jaws in place once a measurement is taken. * Thumb roll: For fine adjustment of the sliding jaw.

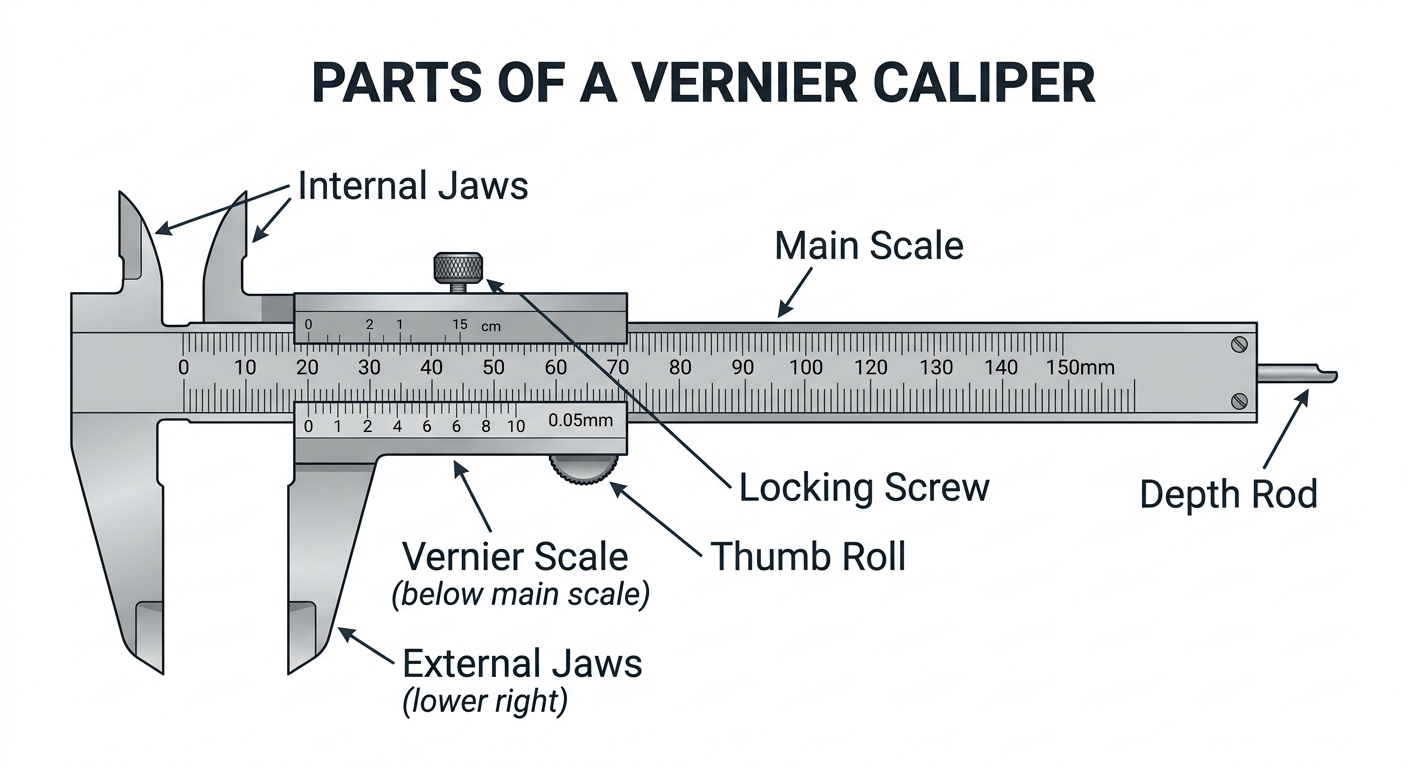

PARTS OF A VERNIER CALIPER

PARTS OF A VERNIER CALIPER

Least Count (LC): The least count of a Vernier caliper is the difference between one smallest division on the main scale (MSD) and one smallest division on the Vernier scale (VSD). LC = 1 MSD − 1 VSD Alternatively, LC = Value of 1 smallest division on main scaleTotal number of divisions on Vernier scale For most Vernier calipers, 1 MSD = 1 mm, and 10 VSD coincide with 9 MSD (9 mm). So, 1 VSD = 910 mm = 0.9 mm. LC = 1 mm − 0.9 mm = 0.1 mm or 0.01 cm. • Zero Error: Before taking any measurement, check for zero error. Close the jaws completely. * No Zero Error: If the zero mark of the Vernier scale perfectly aligns with the zero mark of the main scale. * Positive Zero Error: If the zero mark of the Vernier scale is to the right of the main scale's zero mark. The reading is positive. * Calculation: Find the Vernier division that coincides with any main scale division. Multiply this coincident division by the least count. * Correction: Subtract the positive zero error from the observed reading. * Negative Zero Error: If the zero mark of the Vernier scale is to the left of the main scale's zero mark. The reading is negative. * Calculation: Find the Vernier division that coincides with any main scale division. Subtract this number from the total number of divisions on the Vernier scale (e.g., 10 divisions). Multiply the result by the least count. * Correction: Add the negative zero error (as a positive value) to the observed reading. • How to take a reading: 1. Determine the least count and zero error. 2. Place the object between the appropriate jaws and tighten the locking screw. 3. Read the Main Scale Reading (MSR): This is the value on the main scale just before the zero mark of the Vernier scale. 4. Read the Vernier Scale Reading (VSR): This is the division on the Vernier scale that perfectly coincides with any division on the main scale. 5. Calculate the Observed Reading = MSR + (VSR × LC). 6. Apply Zero Correction: Corrected Reading = Observed Reading − Zero Error (algebraically). If zero error is positive, subtract it. If zero error is negative, add its magnitude. Worked Example: Reading Vernier Calipers with Zero Error A Vernier caliper has a least count of 0.01 cm. When the jaws are closed, the 3rd division of the Vernier scale coincides with a main scale division, and the zero of the Vernier scale is to the right of the main scale zero. When measuring an object, the main scale reading is 3.5 cm, and the 7th division of the Vernier scale coincides with a main scale division. Calculate the actual length of the object.
Solution
Given: LC = 0.01 cm, Zero error coincident division = 3, MSR = 3.5 cm, VSR = 7
Step 1: Calculate Zero Error (ZE):
Since Vernier zero is to the right, it's a positive zero error.
ZE = Coincident division × LC = 3 × 0.01 cm = +0.03 cm
Step 2: Calculate Observed Reading (OR):
OR = MSR + (VSR × LC) = 3.5 cm + (7 × 0.01 cm) = 3.5 cm + 0.07 cm = 3.57 cm
Step 3: Calculate Actual Length (AL):
AL = OR − ZE = 3.57 cm − 0.03 cm = 3.54 cm
Answer: Actual Length = 3.54 cm

Worked Example: Calculating length using Vernier calipers

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark] Name three parts of a Vernier caliper.
2. Apply the Concept [3 marks] A Vernier caliper has a least count of 0.01 cm. When its jaws are closed, the zero mark of the Vernier scale is to the left of the main scale zero, and the 8th Vernier division coincides with a main scale division. When measuring a copper pipe, the main scale reading is 1.2 cm and the 4th Vernier division coincides. Calculate the actual diameter of the pipe.
3. Misconception Check A student calculates the zero error of a Vernier caliper as +0.02 cm. When taking a measurement, the observed reading is 5.45 cm. The student states the actual measurement is 5.47 cm. Is this correct? Explain why.
Answers
1. External jaws, internal jaws, depth rod, main scale, Vernier scale, locking screw, thumb roll (any three).
2.
  • Zero Error (ZE): Since Vernier zero is to the left, it's a negative zero error. If total Vernier divisions are 10, then ZE = (10 − 8) × 0.01 cm = 2 × 0.01 cm = −0.02 cm.
  • Observed Reading (OR): OR = MSR + (VSR × LC) = 1.2 cm + (4 × 0.01 cm) = 1.2 cm + 0.04 cm = 1.24 cm.
  • Actual Length (AL): AL = OR − ZE = 1.24 cm − (−0.02 cm) = 1.24 cm + 0.02 cm = 1.26 cm.
3. No, it is incorrect. When there is a positive zero error, the correction is to subtract the zero error from the observed reading. The student should have calculated 5.45 cm − 0.02 cm = 5.43 cm.
4.3. THE MICROMETER SCREW GAUGE The micrometer screw gauge is an instrument used to measure very small lengths, such as the diameter of thin wires or the thickness of paper, to an accuracy of 0.01 mm or 0.001 cm. • Parts of a Micrometer Screw Gauge: * Frame: U-shaped, holds the other parts. * Anvil: A small, fixed rod on one side of the frame. * Spindle: A movable rod that moves towards or away from the anvil as the thimble is turned. * Sleeve (Main Scale/Pitch Scale): A fixed scale marked in millimetres (mm) and half-millimetres (0.5 mm). * Thimble (Circular Scale): A rotating scale marked with 50 or 100 divisions, which moves over the sleeve. * Ratchet: A mechanism at the end of the thimble that ensures uniform pressure is applied to the object being measured, preventing overtightening. * Lock nut: To lock the spindle in position after a measurement.

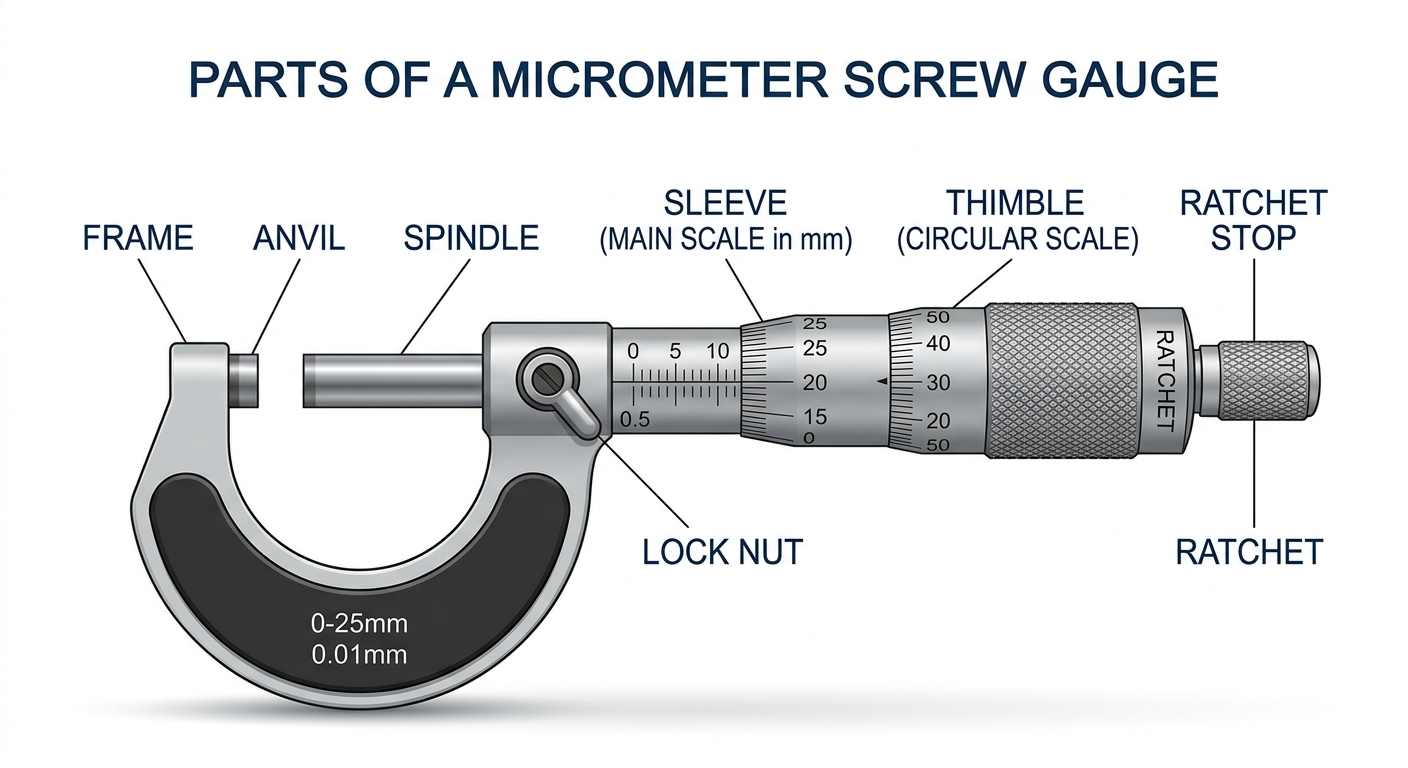

PARTS OF A MICROMETER SCREW GAUGE

PARTS OF A MICROMETER SCREW GAUGE

Least Count (LC): The pitch of the screw is the distance moved by the spindle for one complete rotation of the thimble (usually 0.5 mm or 1 mm). The number of divisions on the thimble scale is usually 50 or 100. LC = PitchNumber of divisions on thimble scale For a common micrometer: Pitch = 0.5 mm, Thimble divisions = 50. LC = 0.5 mm50 = 0.01 mm or 0.001 cm. • Zero Error: Before taking any measurement, close the jaws by turning the ratchet until it clicks. * No Zero Error: If the zero mark of the thimble scale perfectly aligns with the main line (datum line) of the sleeve. * Positive Zero Error: If the zero mark of the thimble scale is below the datum line when the jaws are closed. * Calculation: Read the thimble division that aligns with the datum line. Multiply this by the least count. * Correction: Subtract the positive zero error from the observed reading. * Negative Zero Error: If the zero mark of the thimble scale is above the datum line when the jaws are closed. * Calculation: Read the thimble division that aligns with the datum line. Subtract this number from the total number of divisions on the thimble scale (e.g., 50 divisions). Multiply the result by the least count. * Correction: Add the negative zero error (as a positive value) to the observed reading. • How to take a reading: 1. Determine the least count and zero error. 2. Place the object between the anvil and spindle. Turn the ratchet until it clicks once. 3. Read the Main Scale Reading (MSR): This is the last visible reading on the sleeve, including any 0.5 mm mark if it is past the edge of the thimble. 4. Read the Thimble Scale Reading (TSR): This is the division on the thimble scale that perfectly aligns with the datum line of the sleeve. 5. Calculate the Observed Reading = MSR + (TSR × LC). 6. Apply Zero Correction: Corrected Reading = Observed Reading − Zero Error (algebraically). Worked Example: Reading a Micrometer Screw Gauge with Zero Error A micrometer screw gauge has a least count of 0.01 mm. When the jaws are closed, the 5th division on the thimble scale is below the datum line. When measuring the diameter of a wire, the main scale reading is 3.5 mm, and the 28th division on the thimble scale coincides with the datum line. Calculate the actual diameter of the wire.
Solution
Given: LC = 0.01 mm, Zero error thimble reading = 5, MSR = 3.5 mm, TSR = 28
Step 1: Calculate Zero Error (ZE):
Since the 0 mark is below the datum line, it's a positive zero error.
ZE = Thimble reading × LC = 5 × 0.01 mm = +0.05 mm
Step 2: Calculate Observed Reading (OR):
OR = MSR + (TSR × LC) = 3.5 mm + (28 × 0.01 mm) = 3.5 mm + 0.28 mm = 3.78 mm
Step 3: Calculate Actual Diameter (AD):
AD = OR − ZE = 3.78 mm − 0.05 mm = 3.73 mm
Answer: Actual Diameter = 3.73 mm

Worked Example: Calculating diameter using a micrometer screw gauge

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark] What is the purpose of the ratchet in a micrometer screw gauge?
2. Apply the Concept [3 marks] A micrometer screw gauge has a least count of 0.01 mm. When its jaws are closed, the zero mark of the thimble scale is above the datum line, and the 47th division aligns with the datum line. When measuring a piece of paper, the main scale reading is 0.5 mm, and the 12th division of the thimble scale coincides. Calculate the actual thickness of the paper. (Assume 50 divisions on the thimble scale).
3. Misconception Check True or False: A micrometer screw gauge is suitable for measuring the length of a classroom. Justify your answer.
Answers
1. The ratchet ensures that uniform pressure is applied to the object being measured, preventing overtightening and damage to the instrument or object.
2.
  • Zero Error (ZE): Since 0 mark is above datum line, it's negative. ZE = (50 − 47) × 0.01 mm = 3 × 0.01 mm = −0.03 mm.
  • Observed Reading (OR): OR = MSR + (TSR × LC) = 0.5 mm + (12 × 0.01 mm) = 0.5 mm + 0.12 mm = 0.62 mm.
  • Actual Thickness (AT): AT = OR − ZE = 0.62 mm − (−0.03 mm) = 0.62 mm + 0.03 mm = 0.65 mm.
3. False. A micrometer screw gauge is designed for measuring very small lengths (to 0.01 mm accuracy). It is not suitable for large lengths like a classroom, which would require a tape measure or metre rule.
SUMMARY In this unit, we explored the crucial concepts of precision and accuracy in physical measurements. Precision relates to the consistency of repeated measurements, while accuracy refers to how close a measurement is to the true value. We learned that an ideal measurement is both precise and accurate. We also covered the proper use of three common length-measuring instruments: the metre rule for general lengths, Vernier calipers for more precise measurements of internal, external, and depth dimensions, and the micrometer screw gauge for highly precise measurements of very small dimensions. Understanding zero error and applying zero correction is vital for accurate readings from Vernier calipers and micrometer screw gauges. ASSESSMENT QUESTIONS 1. Define (a) precision and (b) accuracy. [2 marks] 2. State the least count for (a) a standard metre rule, (b) a Vernier caliper, and (c) a micrometer screw gauge. [3 marks] 3. A student measures the width of a textbook with a metre rule and gets 21.5 cm. The known actual width is 21.8 cm. If the student repeats the measurement and consistently gets 21.5 cm, comment on the precision and accuracy of these readings. [3 marks] 4. Explain what parallax error is and how to avoid it when using a metre rule. [2 marks] 5. A Vernier caliper has a least count of 0.01 cm. When its jaws are closed, the zero of the Vernier scale is to the left of the main scale zero, and the 6th Vernier division coincides with a main scale division. When measuring the diameter of a metal rod, the main scale reading is 4.3 cm, and the 9th Vernier division coincides. Calculate the actual diameter of the rod. [4 marks] 6. A micrometer screw gauge has a least count of 0.01 mm. When the anvil and spindle are closed, the 48th division on the thimble scale aligns with the datum line, and the zero of the thimble is above the datum line. When measuring the thickness of a wire, the main scale reading is 1.0 mm, and the 35th division on the thimble scale coincides with the datum line. Calculate the actual thickness of the wire. (Assume 50 divisions on the thimble scale). [4 marks] COMMON DIFFICULTIES & MISCONCEPTIONS • Confusing Precision and Accuracy: Learners often use these terms interchangeably. Emphasize that precision is about repeatability, while accuracy is about closeness to the true value. Use target diagrams to illustrate. • Ignoring Zero Error: Many students forget to check for and apply zero correction, leading to systematic errors in their measurements. Stress the importance of checking zero error before every measurement. • Incorrect Zero Error Calculation (especially negative): Calculating negative zero error can be tricky. Remind students to count from the total divisions (e.g., 50 or 10) downwards, or use the formula (Total divisions - Coincident division) for negative error. • Reading Parallax Error: Students may not position their eyes correctly, leading to incorrect readings from linear scales. Demonstrate the correct eye position. • Overtightening Micrometer Screw Gauge: Applying too much force can deform the object or damage the instrument. Highlight the use of the ratchet to ensure consistent pressure. • Choosing the Wrong Instrument: Using a metre rule for a wire's diameter or a micrometer for a table's length. Emphasize matching the instrument's least count to the required precision for the object being measured. QUICK REFERENCE SUMMARY
Key Terms and Formulas: Precision and Accuracy
Precision Consistency of repeated measurements.
Accuracy Closeness of a measurement to the true value.
Metre Rule LC 1 mm or 0.1 cm.
Vernier Caliper LC 0.1 mm or 0.01 cm.
Micrometer Screw Gauge LC 0.01 mm or 0.001 cm.
Observed Reading MSR + (VSR or TSR × LC)
Actual Reading Observed Reading − Zero Error (algebraically)

Figure: Key terms and formulas for precision and accuracy
