teaching-notes — Physics (10.2 MECHANICS)

TOPIC: 10.2 MECHANICS SUBTOPIC: 10.2.5 Work, Energy and Power SPECIFIC OUTCOMES: 1. Describe sources of renewable and non-renewable energy. 2. Explain the effects of the use of energy sources on the environment. 3. Demonstrate energy transformation from one form to another. 4. Describe the conservation of energy. 5. Demonstrate the calculation of efficiency of energy conversion using the appropriate formula. 6. Demonstrate calculation of power using the appropriate formula. INTRODUCTION Physics helps us understand how the world around us works. Work, energy, and power are fundamental concepts in physics that describe how forces cause movement, how systems can perform work, and the rate at which work is done. Understanding these concepts is crucial for comprehending everything from the operation of simple machines to complex power generation systems and their environmental impact. This unit will explore the different forms of energy, how it transforms, its conservation, and the calculations related to work, power, and efficiency. CORE CONCEPTS 1. ENERGY Energy is defined as the capacity to do work. It exists in various forms, such as kinetic (energy of motion), potential (stored energy), chemical, thermal, electrical, nuclear, and light energy. Sources of Energy Energy sources are broadly categorised into two main types: renewable and non-renewable. Renewable Energy Sources Renewable energy sources are natural resources that replenish themselves over relatively short periods and are considered inexhaustible. They are naturally regenerated and can be used repeatedly without depleting them. Examples of renewable energy sources include: • Solar energy: Energy derived from the sun's radiation. It can be converted into electricity using photovoltaic panels or used for heating. • Wind energy: Energy harnessed from the movement of air (wind) using wind turbines to generate electricity. • Hydroelectric energy: Energy generated from the movement of water, typically by damming rivers and using the force of falling water to spin turbines. Zambia heavily relies on this. • Geothermal energy: Heat energy derived from the Earth's interior. It can be used for electricity generation or direct heating. • Bio-gas: A fuel gas produced from the anaerobic decomposition of organic matter (like animal waste, agricultural waste) by bacteria. Non-Renewable Energy Sources Non-renewable energy sources are natural resources that exist in finite amounts and take millions of years to form. Once depleted, they cannot be replaced within a human timescale. Examples of non-renewable energy sources include: • Chemical/Fuel energy (Fossil Fuels): Energy stored in the chemical bonds of substances like coal, crude oil (petrol, diesel), and natural gas. These are formed from the remains of ancient organisms. • Nuclear energy: Energy released from the nucleus of atoms, typically through nuclear fission (splitting of heavy atoms like uranium) in nuclear power plants.

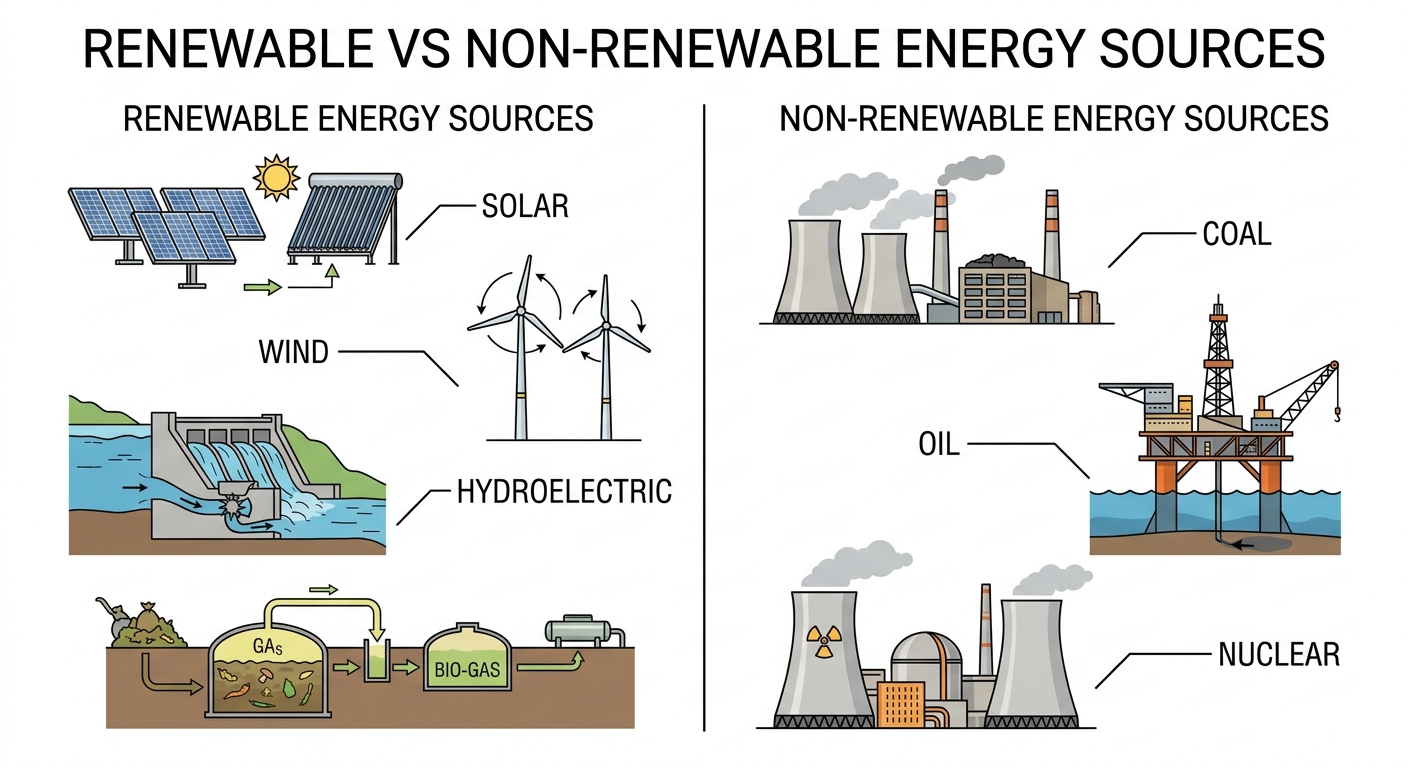

RENEWABLE VS NON-RENEWABLE ENERGY SOURCES

2. ENVIRONMENTAL EFFECTS OF ENERGY USE The use of energy sources, particularly non-renewable ones, can have significant negative impacts on the environment. Common environmental effects include: • Air pollution: Burning fossil fuels releases harmful gases (e.g., carbon dioxide, sulfur dioxide, nitrogen oxides) and particulate matter into the atmosphere, leading to smog, acid rain, and respiratory illnesses. Carbon dioxide is a major greenhouse gas contributing to climate change. • Water pollution: Mining for coal and uranium can contaminate water sources with toxic chemicals. Oil spills from drilling or transportation can devastate marine ecosystems. Thermal pollution from power plants discharging hot water into rivers can harm aquatic life. • Deforestation: Large areas of forests may be cleared for mining operations (e.g., coal), for construction of hydroelectric dams (which flood valleys), or for biomass production, leading to habitat loss, soil erosion, and reduced carbon sequestration. • Land degradation: Mining activities can permanently alter landscapes, creating vast open pits or waste heaps. This can lead to soil erosion, loss of agricultural land, and general destruction of ecosystems. • Climate Change: The emission of greenhouse gases, primarily carbon dioxide from burning fossil fuels, traps heat in the Earth's atmosphere, leading to global warming, extreme weather events, and rising sea levels.

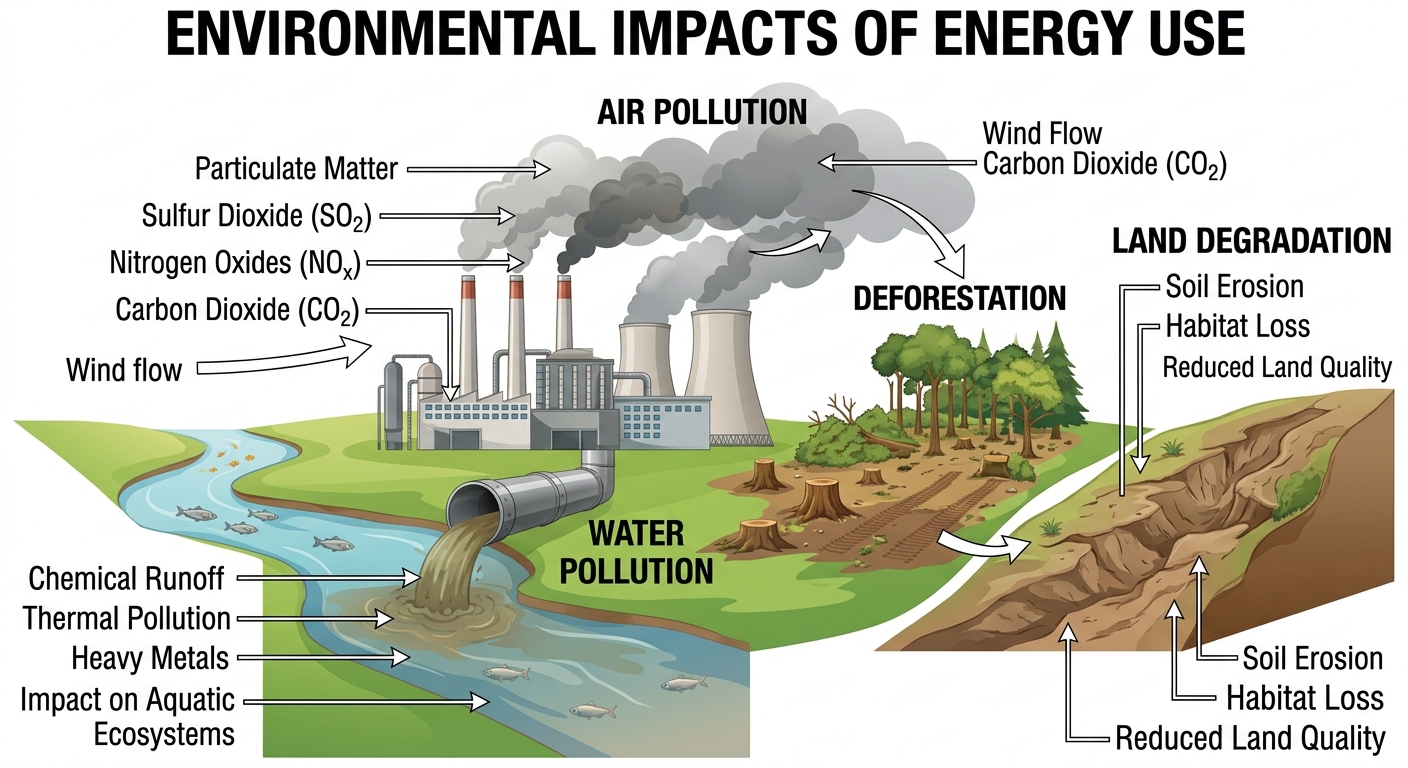

ENVIRONMENTAL IMPACTS OF ENERGY USE

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark]	Define a renewable energy source.
2. Apply the Concept [2 marks]	List two environmental effects associated with the burning of fossil fuels.
3. Misconception Check	True or False: Nuclear energy is considered a renewable energy source because it generates a large amount of power. Justify your answer.

Answers

1. A renewable energy source is a natural resource that replenishes itself over a relatively short period and is considered inexhaustible.
2. Air pollution (due to greenhouse gas emissions, acid rain, smog) and climate change (due to carbon dioxide emissions). Other valid answers include land degradation (from mining coal) or water pollution (from mining).
3. False. Nuclear energy is a non-renewable energy source because it relies on finite resources like uranium, which take millions of years to form. The amount of power generated does not determine if a source is renewable or non-renewable.

3. ENERGY TRANSFORMATION Energy transformation (or energy conversion) is the process of changing energy from one form to another. Energy is constantly transforming around us. Examples of energy transformation: • In a battery-powered light bulb: Chemical energy (stored in the battery) is converted into electrical energy (flows through wires), which is then converted into light energy and thermal energy (heat) by the bulb. * Chemical energy → Electrical energy → Light energy + Thermal energy • In a car engine: Chemical energy (in fuel) is converted into thermal energy (from combustion), which expands gases to produce kinetic energy (of moving parts), ultimately moving the car. * Chemical energy → Thermal energy → Kinetic energy • In a solar panel: Light energy (from the sun) is converted into electrical energy. * Light energy → Electrical energy • In a hydroelectric power station: Gravitational potential energy (of water behind the dam) is converted into kinetic energy (of falling water), then into kinetic energy (of turbines), and finally into electrical energy (by the generator). * Gravitational potential energy → Kinetic energy → Electrical energy

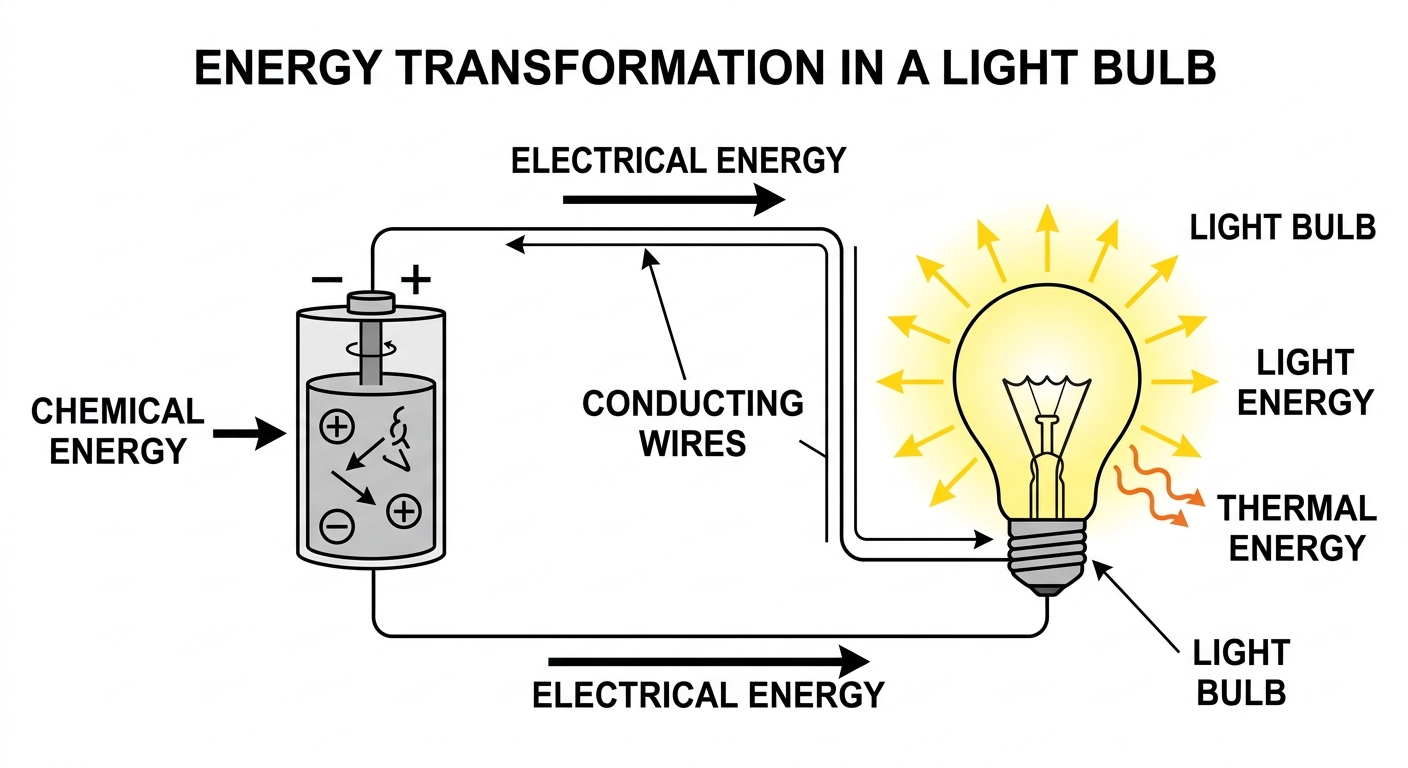

ENERGY TRANSFORMATION IN A LIGHT BULB

4. LAW OF CONSERVATION OF ENERGY The Law of Conservation of Energy states that energy cannot be created or destroyed, but it can only be transformed from one form to another. This means that the total amount of energy in an isolated system remains constant. While energy can change forms, the total energy before and after any transformation remains the same. In practical applications, some energy is often "lost" to the surroundings, usually as thermal energy (heat) or sound, but this energy is not destroyed; it is simply converted into less useful forms that dissipate into the environment.

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark]	State the Law of Conservation of Energy.
2. Apply the Concept [2 marks]	Describe the energy transformation that occurs when a person eats food and then cycles a bicycle.
3. Misconception Check	True or False: When a machine "loses" energy as heat, that energy is destroyed. Justify your answer.

Answers

1. The Law of Conservation of Energy states that energy cannot be created or destroyed, but it can only be transformed from one form to another.
2. Chemical energy (from food) is converted into kinetic energy (of the person and bicycle) and thermal energy (due to body processes and friction).
3. False. Energy is never destroyed. When a machine "loses" energy as heat, it is transformed into thermal energy and dissipated into the surroundings, but the total amount of energy remains conserved.

5. EFFICIENCY OF ENERGY CONVERSION Efficiency is a measure of how effectively energy is converted from one form to another, or how much useful energy output is obtained from a given energy input. No real machine is 100% efficient because some energy is always lost, usually as heat or sound, due to friction and other factors. The formula for calculating efficiency is:

Formula for Efficiency

Efficiency = Energy outputEnergy input × 100%

Where:
• Energy output = Useful energy produced by the system (measured in Joules, J)
• Energy input = Total energy supplied to the system (measured in Joules, J)

Figure: Formula for calculating efficiency

Worked Example 1: Calculating Efficiency A light bulb consumes 100 J of electrical energy and produces 20 J of light energy. Calculate the efficiency of the light bulb.

Solution

Given:	Energy input = 100 J, Energy output = 20 J
Find:	Efficiency = ?
Formula:	Efficiency = Energy outputEnergy input × 100%
Substitute:	Efficiency = 20 J100 J × 100%
Answer:	Efficiency = 20%

Worked Example: Calculating the efficiency of a light bulb

6. WORK AND POWER Work In physics, work is done when a force causes a displacement of an object in the direction of the force. Work (W) is calculated using the formula:

W = F × d

Where: • W = Work done (measured in Joules, J) • F = Force applied (measured in Newtons, N) • d = Distance moved in the direction of the force (measured in metres, m) Power Power is the rate at which work is done or the rate at which energy is transferred. A powerful machine can do a lot of work in a short amount of time. The formula for calculating power is:

Formula for Power

P = Wt

Where:
• P = Power (measured in Watts, W)
• W = Work done (measured in Joules, J)
• t = Time taken (measured in seconds, s)

Figure: Formula for calculating power

Worked Example 2: Calculating Power A machine lifts a 50 N weight through a vertical distance of 2 m in 5 seconds. Calculate the power developed by the machine.

Solution

Given:	F = 50 N, d = 2 m, t = 5 s
Find:	P = ?
Formula (Work):	W = F × d
Substitute (Work):	W = 50 N × 2 m = 100 J
Formula (Power):	P = Wt
Substitute (Power):	P = 100 J5 s
Answer:	P = 20 W

Worked Example: Calculating power from work done over time

✅ Check Your Understanding

Pause here. Let learners attempt these before moving on.

1. Quick Recall [1 mark]	Define power in physics.
2. Apply the Concept [3 marks]	A pump lifts 200 kg of water to a height of 10 m in 50 seconds. If the useful energy output is 20 000 J and the total energy input is 25 000 J, calculate the power of the pump and its efficiency. (Take g = 10 N/kg).
3. Misconception Check	True or False: A machine is 100% efficient if the energy input is equal to the useful energy output. Justify your answer.

Answers

1. Power is the rate at which work is done or the rate at which energy is transferred.
2.
    Power calculation:
    Given: Useful Energy output (Work done) = 20 000 J, Time = 50 s
    Find: P = ?
    Formula: P = Wt
    Substitute: P = 20 000 J50 s
    Answer: P = 400 W
    Efficiency calculation:
    Given: Energy output = 20 000 J, Energy input = 25 000 J
    Find: Efficiency = ?
    Formula: Efficiency = Energy outputEnergy input × 100%
    Substitute: Efficiency = 20 000 J25 000 J × 100%
    Answer: Efficiency = 80%
3. True. If the energy input is equal to the useful energy output, it means there are no energy losses (e.g., to heat or sound), which is the definition of 100% efficiency.

SUMMARY Work, energy, and power are fundamental concepts in physics. Energy is the capacity to do work and exists in renewable forms (solar, wind, hydroelectric, geothermal, bio-gas) and non-renewable forms (fossil fuels, nuclear). The use of these sources, especially non-renewables, leads to environmental issues like air pollution, water pollution, deforestation, and land degradation. Energy constantly transforms from one form to another, but the total energy in a closed system remains constant, as stated by the Law of Conservation of Energy. Efficiency measures how much useful energy is obtained from total energy input, while power measures the rate at which work is done or energy is transferred. ASSESSMENT QUESTIONS 1. Define the term "energy" and state two forms in which it can exist. [3 marks] 2. Differentiate between renewable and non-renewable energy sources, giving one example for each. [4 marks] 3. Explain two negative environmental effects of relying heavily on fossil fuels for energy generation. [4 marks] 4. Describe the energy transformations that occur when a torch (flashlight) is switched on. [3 marks] 5. State the Law of Conservation of Energy. [2 marks] 6. A machine performs 1200 J of useful work in 15 seconds. If the total energy supplied to the machine is 1500 J, calculate: a) The power of the machine. [3 marks] b) The efficiency of the machine. [3 marks] 7. A 60 W light bulb operates for 5 minutes. a) Calculate the total electrical energy consumed by the light bulb in Joules. [3 marks] b) If the bulb is 15% efficient, how much light energy does it produce? [3 marks] COMMON DIFFICULTIES & MISCONCEPTIONS • Confusing Work and Energy: Students often use "work" and "energy" interchangeably. Emphasize that energy is the capacity to do work, while work is the process of transferring energy by force over a distance. • Misunderstanding "Lost" Energy: The idea that energy is "lost" or "wasted" can lead to the misconception that it is destroyed. Stress that energy is transformed into less useful forms (e.g., heat, sound) that dissipate, but the total energy is conserved. • Efficiency Interpretation: Students might think a machine with low efficiency is "bad." Clarify that even low-efficiency machines can be useful, and 100% efficiency is impossible in real-world scenarios due to unavoidable energy losses (e.g., friction). • Units and Formulas: Confusion between units (Joules for energy/work, Watts for power) and misapplication of formulas (e.g., using power formula for energy). • Direction in Work: Neglecting that displacement must be in the direction of the force for work to be done. For example, carrying a box horizontally involves no work done against gravity. • Renewable vs. Non-renewable: Sometimes students confuse nuclear energy as renewable due to its high power output, forgetting it uses finite resources. QUICK REFERENCE SUMMARY

Key Concepts: Work, Energy, and Power

Energy	Capacity to do work. Exists in various forms. Unit: Joule (J).
Renewable Energy	Replenishes naturally (e.g., solar, wind, hydro, geothermal, bio-gas).
Non-Renewable Energy	Finite resources (e.g., fossil fuels, nuclear energy).
Energy Transformation	Change of energy from one form to another.
Conservation of Energy	Energy cannot be created or destroyed, only transformed.
Work (W)	Force causing displacement in its direction. Formula: W = F × d. Unit: Joule (J).
Power (P)	Rate of doing work/transferring energy. Formula: P = Wt. Unit: Watt (W).
Efficiency	Measure of useful energy output from input. Formula: Efficiency = Energy outputEnergy input × 100%.

Figure: Summary of key terms and formulas for Work, Energy, and Power
