PURE PHYSICS – GRADE 10 TOPIC: MECHANICS SUBTOPIC: 10.2.4 Moment of forces SPECIFIC OUTCOMES: 1. 10.2.4.1 Perform calculations based on the principle of moments. 2. 10.2.4.2 Investigate the everyday application of moments. INTRODUCTION Forces do not only cause linear motion; they can also cause objects to rotate. The turning effect of a force is known as a moment. Understanding moments is crucial in physics as it helps explain how levers work, why it's easier to open a door by pushing further from its hinges, and how various machines achieve mechanical advantage. This topic explores the calculation of moments and their applications in everyday life. CORE CONCEPTS 1. MOMENT OF A FORCE (TORQUE) The moment of a force, also known as torque, is the turning effect produced by a force about a pivot or a fixed point. It is a measure of how much a force acting on an object tends to cause that object to rotate. The moment of a force is calculated by the product of the force and the perpendicular distance from the pivot to the line of action of the force.

Formula for Moment of a Force

Moment

M = F × d

M = Moment (Newton-metre, Nm) | F = Force (Newtons, N) | d = Perpendicular distance from pivot to the line of action of the force (metres, m)

Figure: Formula for calculating the moment of a force

The pivot is the point around which an object rotates. The perpendicular distance is the shortest distance from the pivot to the line along which the force is acting.

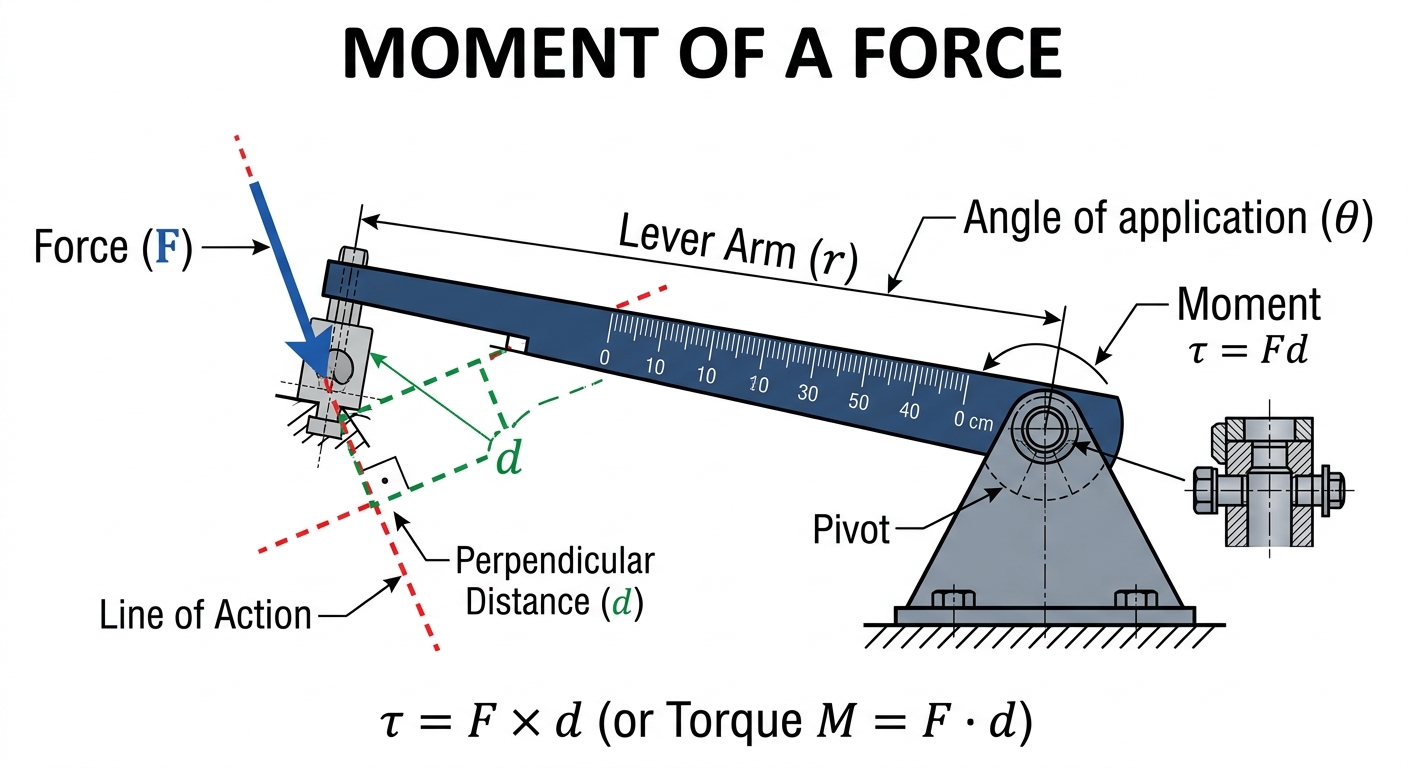

MOMENT OF A FORCE

Worked Example 1: Calculating the Moment A force of 50 N is applied at a perpendicular distance of 0.8 m from a pivot. Calculate the moment produced by this force.

Solution

Given:	F = 50 N, d = 0.8 m
Find:	M = ?
Formula:	M = F × d
Substitute:	M = 50 N × 0.8 m
Answer:	M = 40 Nm

Worked Example: Calculating moment of a force

2. CLOCKWISE AND ANTI-CLOCKWISE MOMENTS Moments can cause rotation in two directions: • Clockwise moment: A moment that tends to cause an object to rotate in the same direction as the hands of a clock. • Anti-clockwise moment: A moment that tends to cause an object to rotate in the opposite direction to the hands of a clock. It is important to distinguish between these two types of moments, especially when dealing with equilibrium. 3. PRINCIPLE OF MOMENTS The principle of moments states that for an object to be in rotational equilibrium (i.e., balanced and not rotating), the sum of the clockwise moments about any pivot must be equal to the sum of the anti-clockwise moments about the same pivot. This principle is fundamental to understanding how levers, see-saws, and other simple machines maintain balance or achieve their function.

ΣClockwise Moments = ΣAnti-clockwise Moments

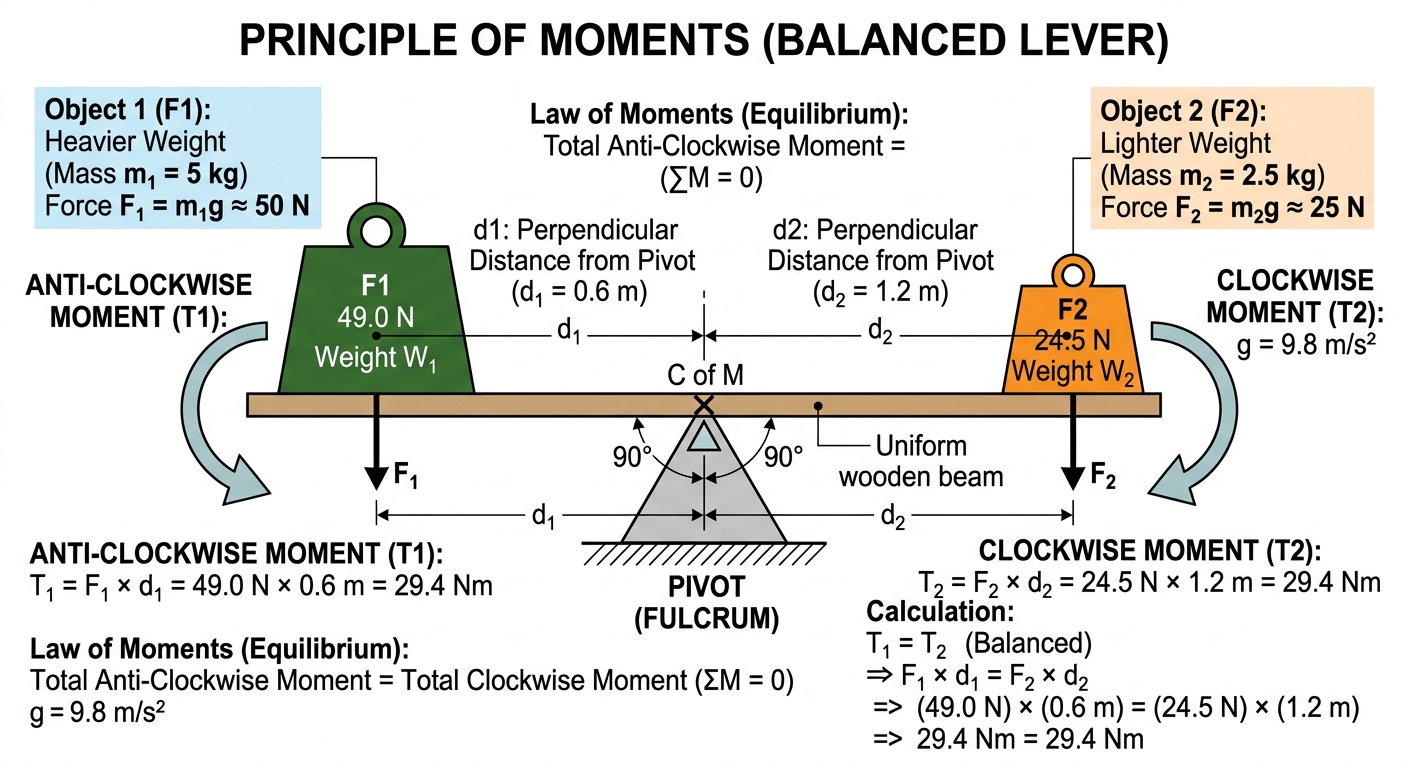

PRINCIPLE OF MOMENTS (BALANCED LEVER)

Worked Example 2: Applying the Principle of Moments A uniform rod is pivoted at its centre. A weight of 30 N is hung 0.5 m to the left of the pivot. Where must a 20 N weight be hung on the right side of the pivot to balance the rod?

Solution

Given:	F₁ = 30 N, d₁ = 0.5 m, F₂ = 20 N
Find:	d₂ = ?
Formula:	ΣClockwise Moments = ΣAnti-clockwise Moments F₂ × d₂ = F₁ × d₁
Substitute:	20 N × d₂ = 30 N × 0.5 m 20d₂ = 15
Calculate:	d₂ = 1520
Answer:	d₂ = 0.75 m

Worked Example: Calculating unknown distance using principle of moments

4. CENTRE OF GRAVITY (CG) The centre of gravity (CG) of an object is the imaginary point where the entire weight of the object appears to act. For a uniform object, the centre of gravity is at its geometric centre. When considering moments, the weight of the object itself creates a moment if its centre of gravity is not directly above the pivot. 5. EVERYDAY APPLICATION OF MOMENTS Moments are fundamental to the operation of many tools, machines, and structures we encounter daily. Understanding how they work allows us to design and use these items effectively. • Levers: These are simple machines that use the principle of moments to multiply force or distance. Examples include: * Class 1 Lever: Pivot is between the effort and the load (e.g., see-saw, crowbar). * Class 2 Lever: Load is between the pivot and the effort (e.g., wheelbarrow, nutcracker). * Class 3 Lever: Effort is between the pivot and the load (e.g., fishing rod, tweezers). • Spanners/Wrenches: A long handle on a spanner allows a small force applied further from the bolt (pivot) to create a large moment, making it easier to loosen or tighten the bolt. • Wheelbarrows: These are class 2 levers where the wheel acts as the pivot, the load is in the tray, and the effort is applied by the user's hands. The design allows a person to lift a heavy load with less effort, illustrating mechanical advantage. • Cranes: Cranes use counterweights and long arms to lift heavy loads. The principle of moments is used to ensure stability and prevent the crane from toppling over by balancing the moment created by the load with the moment created by the counterweight. • Doors: The hinges of a door act as the pivot. It is easier to open a door by pushing or pulling on the handle (further from the hinges) because this increases the perpendicular distance, thus creating a larger moment with less applied force. • See-saws: A classic example where two people of different weights can balance if the heavier person sits closer to the pivot and the lighter person sits further away, ensuring clockwise moments equal anti-clockwise moments.

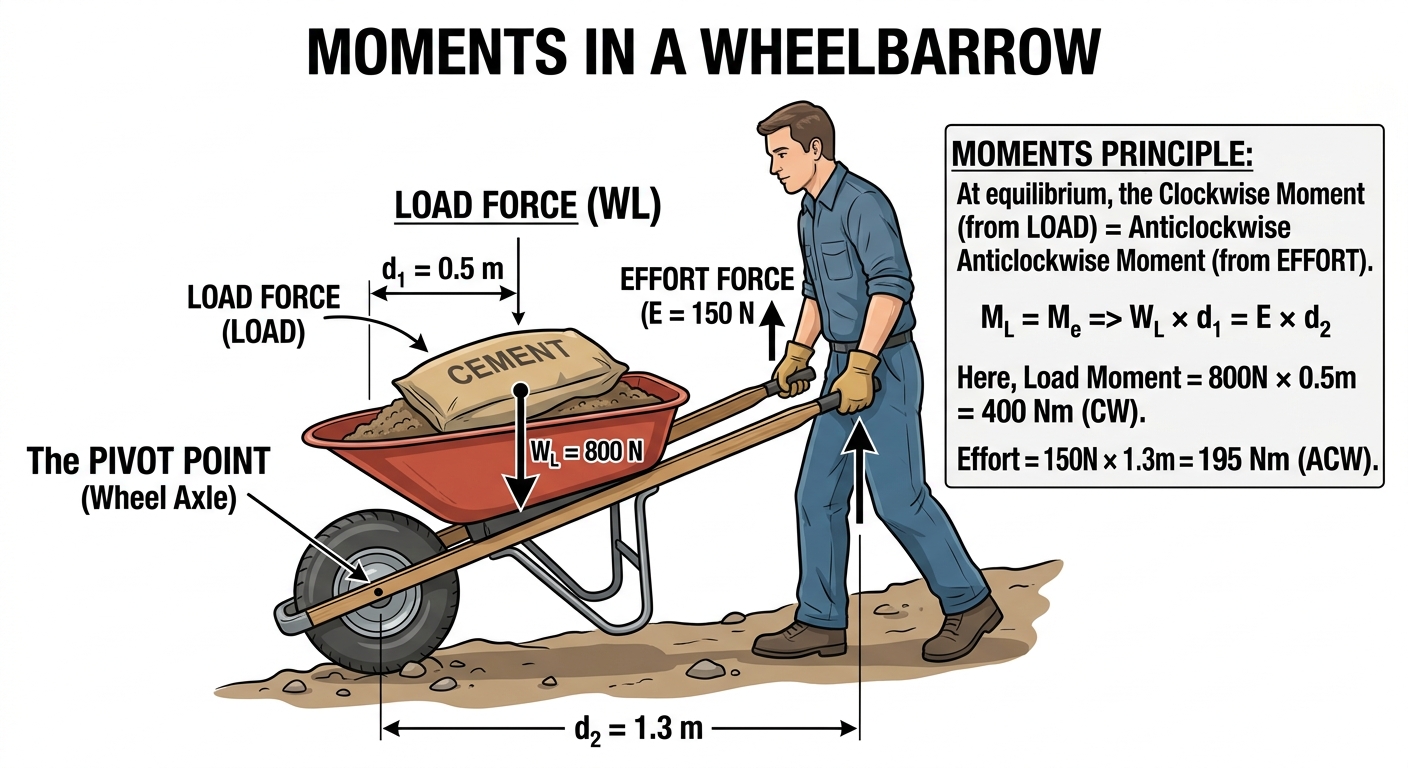

MOMENTS IN A WHEELBARROW

SUMMARY The moment of a force is its turning effect about a pivot, calculated as the product of the force and the perpendicular distance from the pivot. For an object to be in rotational equilibrium, the principle of moments states that the sum of clockwise moments must equal the sum of anti-clockwise moments. This principle is widely applied in various everyday tools and machines, such as levers, spanners, wheelbarrows, and cranes, to achieve balance or mechanical advantage. ASSESSMENT QUESTIONS 1. A uniform plank of length 4 m and weight 80 N is pivoted at its centre. A weight of 120 N is placed at one end of the plank. a) Calculate the moment produced by the 120 N weight about the pivot. b) What force must be applied at the other end of the plank to balance it? 2. Explain, with an example, why it is generally easier to loosen a tight nut with a long spanner than with a short one. 3. Identify three everyday applications of the principle of moments and briefly explain how moments are utilised in each. COMMON DIFFICULTIES & MISCONCEPTIONS • Confusing Force and Moment: Students often confuse force (a push or pull) with moment (the turning effect of a force). Emphasise that a moment requires both a force and a perpendicular distance from a pivot. • Incorrect Perpendicular Distance: A common error is using the direct distance from the pivot to the point of force application instead of the perpendicular distance. Always stress that the distance must be at 90 degrees to the line of action of the force. • Incorrectly Identifying the Pivot: Sometimes, students struggle to identify the correct pivot point, especially in complex systems. Remind them that the pivot is the point around which rotation occurs or is intended to occur. • Mixing Up Clockwise and Anti-clockwise Moments: In problems involving equilibrium, students might incorrectly assign clockwise or anti-clockwise directions to moments, leading to incorrect calculations. Encourage drawing clear diagrams with directional arrows. • Ignoring the Weight of the Object: For non-uniform objects or when the pivot is not at the centre of gravity, the weight of the object itself can create a moment. Students often forget to account for this. QUICK REFERENCE SUMMARY

Key Concepts: Moment of Forces

Moment (Torque)	The turning effect of a force about a pivot. Formula: M = F × d. Unit: Newton-metre (Nm).
Pivot	The fixed point about which an object rotates.
Perpendicular Distance	The shortest distance from the pivot to the line of action of the force.
Principle of Moments	For rotational equilibrium, ΣClockwise Moments = ΣAnti-clockwise Moments.
Centre of Gravity (CG)	The point where the entire weight of an object appears to act.

Figure: Quick reference summary of moment of forces
